Main application /Application
Widely used in new energy vehicles, high voltage power supply, welding machine power supply, induction heating power supply and other equipment from the DC support and filter.
Product features /Characteristics
Dielectric: polypropylene film
Structure: metal film dry structure
Package: plastic shell, flame retardant (94V-0 UL) epoxy package
Lead out: tin plated copper nut or screw
high stability
Low ESR, ESL
Self healing

Performance

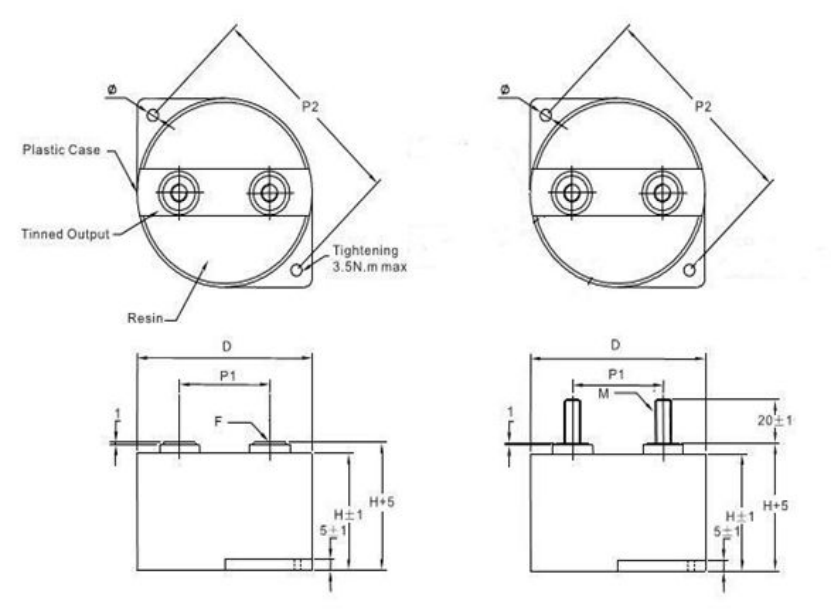

Shape and size

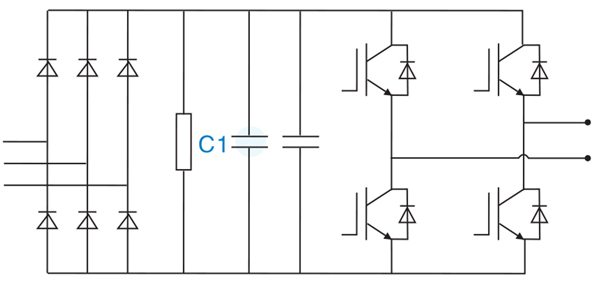

Typical circuit diagram

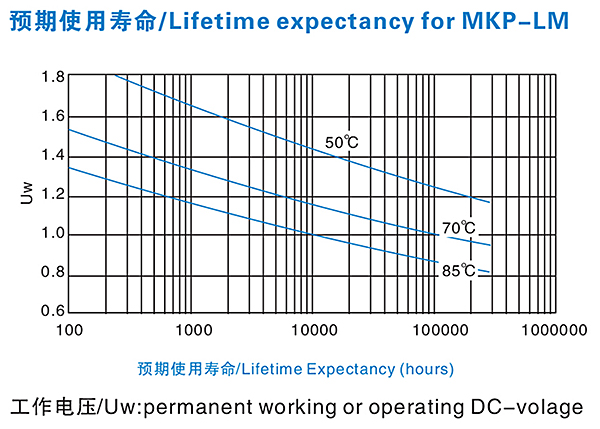

Waveforms

技术性能/Specifications

引用标准/Reference standards	IEC 61071 60068
工作温度范围/Operating temperature range	-40~85℃
容量范围/Capacitance	6.8~500μF
额定电压/ Rated Voltage	500VDC-2200
容量偏差 /Tolerance	±5%, ±10%
极间耐电压 /Test voltage between terminals	1.5Ur(DC) 10s 25±5℃
极壳耐电压/ Test voltage between terminals and case	3000V 50Hz 60S, 25±5℃
损耗角正切/Dissipation factor	tgδ≤1×10-3 at 25±5℃ , 100Hz
绝缘电阻/Insulation resistance	C*IR≥5000S, at 100VDC,25±5℃,60S
预期寿命/Life expectancy	100000h at Ur and 70℃
