DTM

Widely used in UPSinverter induction heaters,welding

machine for IGBT snubber protection

Dielectric: Polypropylene film

Construction: Extended double side metalized carrier film

with internal series connection and metalized film

Coating: Resistant plastic case with resin sealing.

Flame retardant execution(UL 94V-0)

Terminals: Tinned copper lugs

High pulse current, high dv/dt

Low ESL and ESR

Self healing


  • Performance

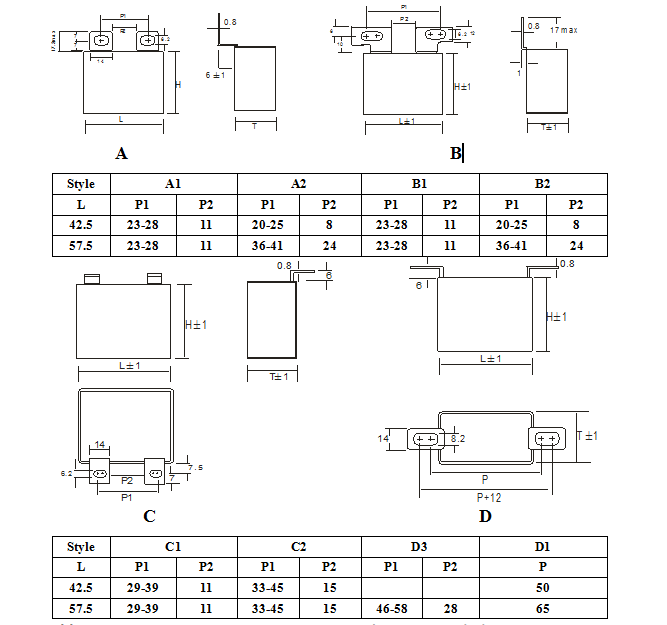

  • Shape and size
  • Typical circuit diagram
  • Waveforms

技术性能/Specifications

引用标准/Reference standards

IEC 61071 60068

工作温度范围/Operating temperature range

-40~85

容量范围/Capacitance

0.1~10μF

额定电压 /Rated Voltage

630~3000V.DC

容量偏差 /Tolerance

± 5% 10%

极间耐电压 /Test voltage between terminals

1.5Ur(DC) 10s  25±5

极壳耐电压 /Test voltage between terminals and case

3000V 50Hz 60S, 25±5

损耗角正切/Dissipation factor

tgδ≤4×10-4 at 25±5, 1KHz

绝缘电阻/Insulation resistance

C*IR30000S,   at  100VDC,25±5,60S

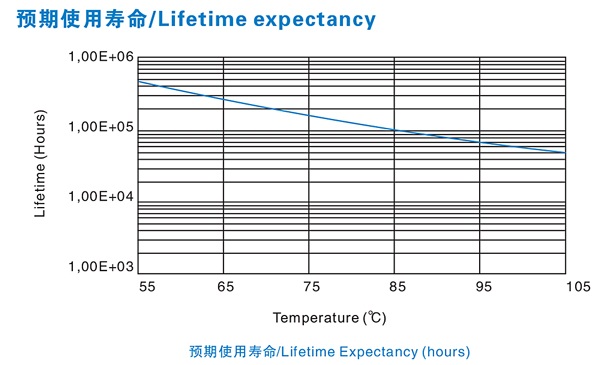

预期寿命/Life expectancy

100000h at Ur and 70
