Main application /Application
Widely used in UPS, SMPSs, inverter power supply, welding machine power supply and other equipment in the input and output filter and high frequency, high ripple current.
Product features /Characteristics
Dielectric: polypropylene film
Structure: metal film dry structure
Package: flame retardant Myra tape, flame retardant (94V-0 grade) epoxy package
Lead out: tin plated copper nut or lead
High ripple current capability
High stability, low loss
Self healing

Performance

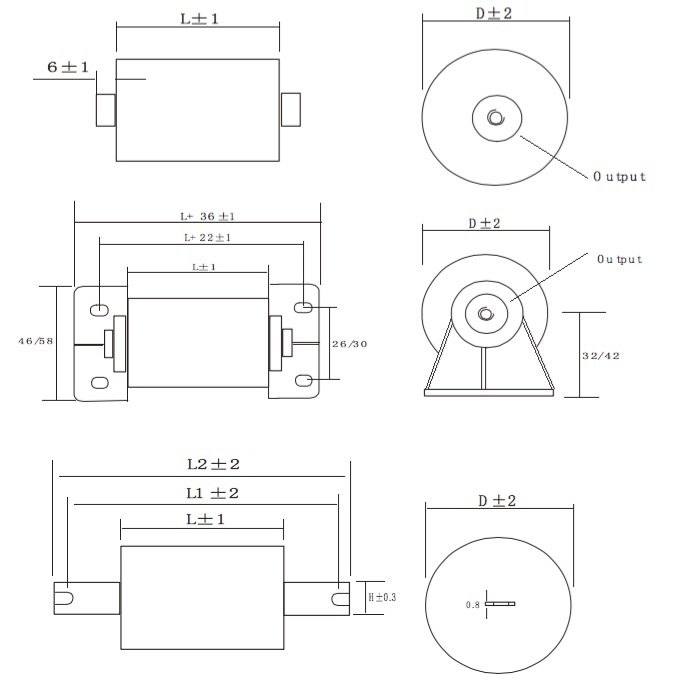

Shape and size

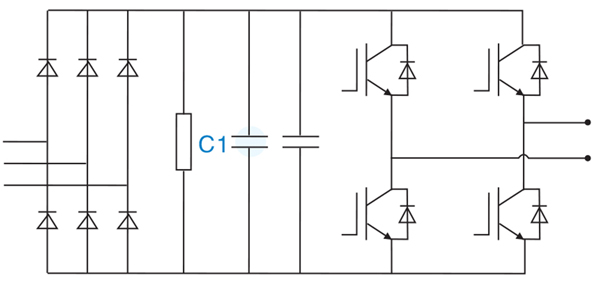

Typical circuit diagram
Waveforms

Technical performance /Specifications
Reference standard standard /Reference
IEC 610716006860384
Working temperature range temperature range /Operating
-40~85 C
Capacity range /Capacitance
5.0~100 mu F
Rated voltage / Voltage Rated
4008001000Vdc (250400500Vac)
Capacity deviation / Tolerance
+ 5%, + 10%
Pole voltage / voltage between terminals Test
10s 1.6Un 25 + 5
Pole shell voltage resistant voltage between terminals and case /Test
50Hz 60S 3000V, 25 + 5
The loss tangent of /Dissipation factor
TG 8 is less than 1 * 10-3 at 25 + 5 C, 1KHz
Insulation resistance resistance /Insulation
C*IR = 5000S, at 100VDC, 25 - 5 DEG C, 60S

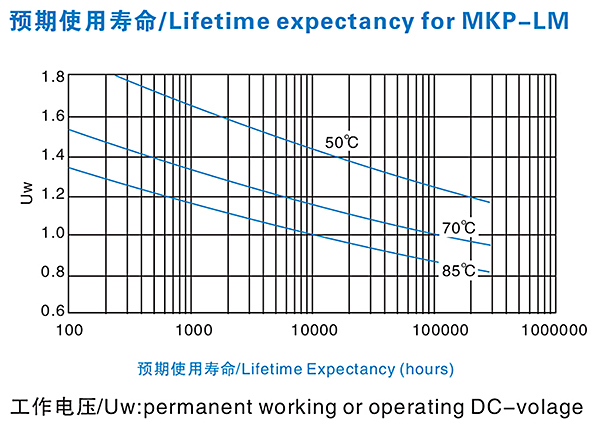

Life expectancy expectancy /Life
At Un and 100000h 70
