引用标准Reference standard

I EC 61071,60068 GB/T14747

工作温度范围Operating temperature range

-40~85℃

容量范围Capacitance

8.0~350μF

额定电压 Rated Voltage

250~450Vac (400~850Vdc)

容量偏差 Tolerance

±5%, ±10%

极间耐电压 Test voltage between terminals

2.0Un 10s  25±5℃

极壳耐电压 Test voltage between terminals and case:

3000V 50Hz 60S, 25±5℃

耗角正切Dissipation factor

损: tgδ≤2×10^-3 at  25±5℃ , 100Hz

绝缘电阻Insulation resistance

C*IR≥5000S,   at  100VDC,25±5℃,60S

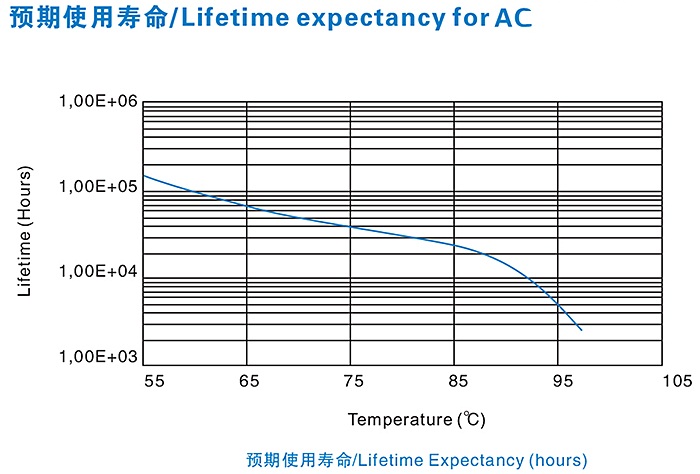

预期寿命Life expectancy

100000h at Un and 70℃，
