DAC

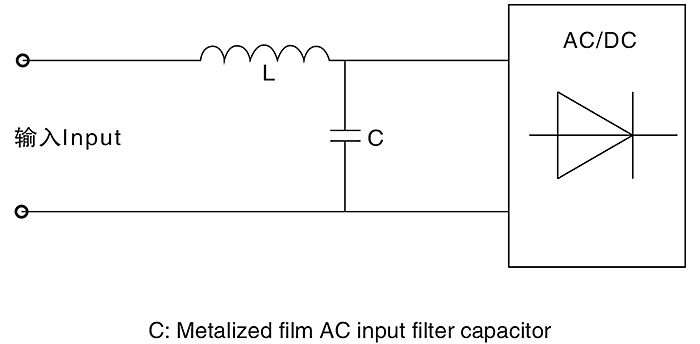

Windy used in for power electronic equipment, AC filter applications.

Dielectric: Polypropylene film

Construction: Extended metalized r film, dry construction

Coating: Aluminium case with resin sealing.

Flame retardant execution(UL 94V-0)

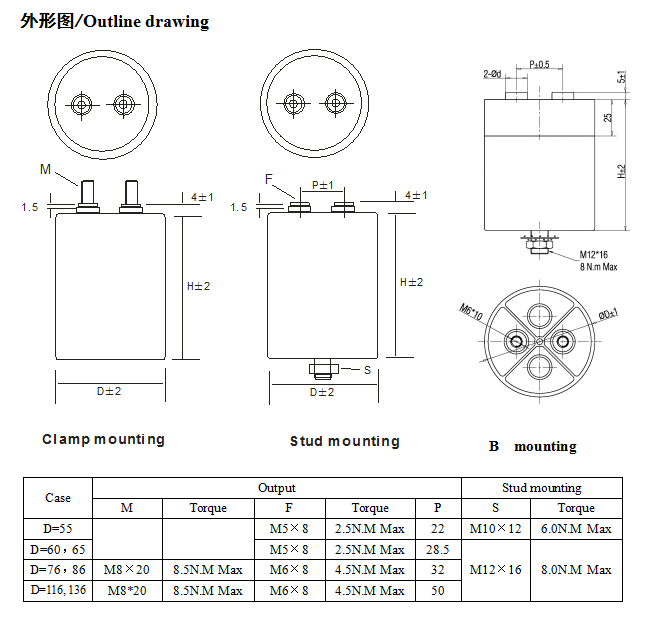

Terminals: Copper nut or screw leads

High current，high capacitance

low losses，low inductance

Self healing

技术性能/Specifications

引用标准Reference standard	I EC 61071,60068 GB/T14747
工作温度范围Operating temperature range	-40~85℃
容量范围Capacitance	8.0~350μF
额定电压 Rated Voltage	250~450Vac (400~850Vdc)
容量偏差 Tolerance	±5%, ±10%
极间耐电压 Test voltage between terminals	2.0Un 10s 25±5℃
极壳耐电压 Test voltage between terminals and case:	3000V 50Hz 60S, 25±5℃
耗角正切Dissipation factor	损: tgδ≤2×10^-3 at 25±5℃ , 100Hz
绝缘电阻Insulation resistance	C*IR≥5000S, at 100VDC,25±5℃,60S

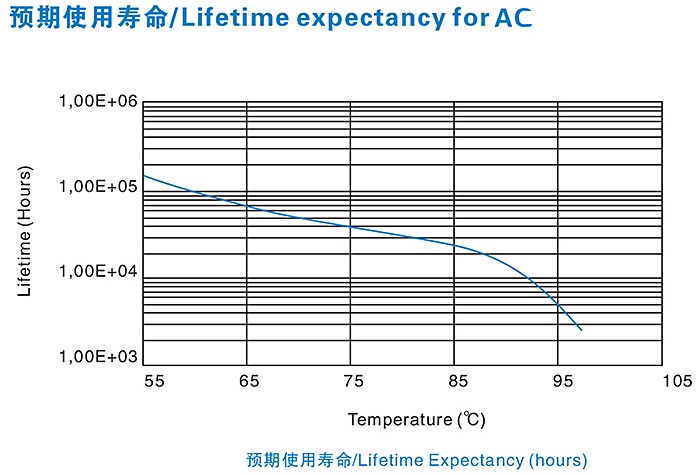

预期寿命Life expectancy	100000h at Un and 70℃，
