引用标准/Reference standards

IEC 61071 60068

工作温度范围/Operating temperature range

-40~85℃

容量范围/Capacitance

0.1~10μF

额定电压 /Rated Voltage

630~3000V.DC

容量偏差 /Tolerance

± 5%  10%

极间耐电压 /Test voltage between terminals

1.5Ur(DC) 10s  25±5℃

极壳耐电压 /Test voltage between terminals and case

3000V 50Hz 60S, 25±5℃

损耗角正切/Dissipation factor

tgδ≤4×10^-4   at 25±5℃ , 1KHz

绝缘电阻/Insulation resistance

C*IR≥30000S,   at  100VDC,25±5℃,60S

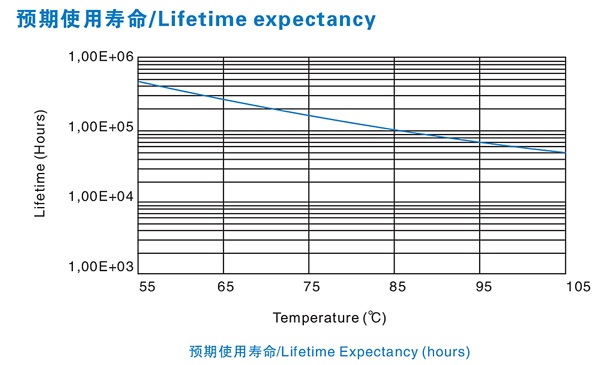

预期寿命/Life expectancy

100000h at Ur and 70℃
