Mica Capacitor
High power, high frequency and high voltage mica capacitor with aluminum shell film capacitor
Products with broadband, high power, low power consumption and other characteristics, widely used in broadcast transmitters, high frequency quenching equipment.
Working temperature range - 55 ~ 125 ℃
Dimensions Φ80 ninety × 72, various shapes can be customized
Frequency range 0 ~ 100MHz
Capacity range 1000pf – 10 μ F
Capacity accuracy g (± 2%), J (± 5%), K (± 10%)
Rated working voltage (UR) 5kV ~ 45kv, test voltage 1.5ur
Working current 1ka ~ 12ka
Insulation resistance ≥ 2000m Ω (measured at 500V)
Loss tangent TG δ ≤8 × 10-4 (1kHz)

  • Performance

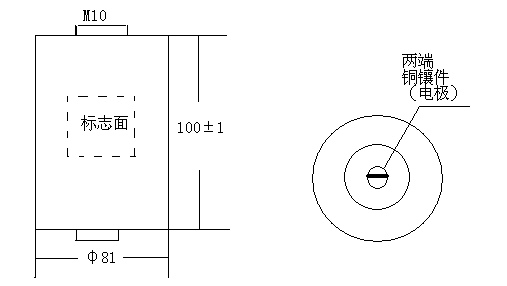

  • Shape and size
  • Typical circuit diagram
  • Waveforms
