引用标准/Reference standard

IEC 61071 60068 60384

工作温度范围/Operating temperature range

-40~85℃

容量范围/Capacitance

5.0~200μF

额定电压/ Rated Voltage

400,800,1000Vdc (250,400,500Vac)

容量偏差/ Tolerance

±5%, ±10%

极间耐电压/ Test voltage between terminals

1.6Un 10s  25±5℃

极壳耐电压 /Test voltage between terminals and case

3000V 50Hz 60S, 25±5℃

损耗角正切/Dissipation factor

tgδ≤1×10^-3 at  25±5℃ , 1KHz

绝缘电阻/Insulation resistance

C*IR≥5000S,   at  100VDC,25±5℃,60S

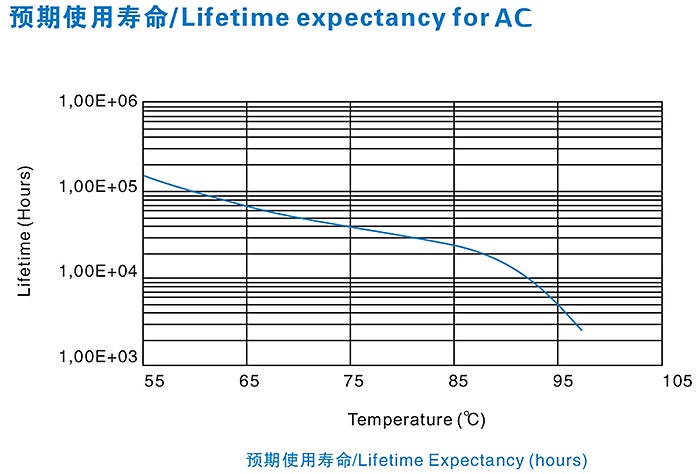

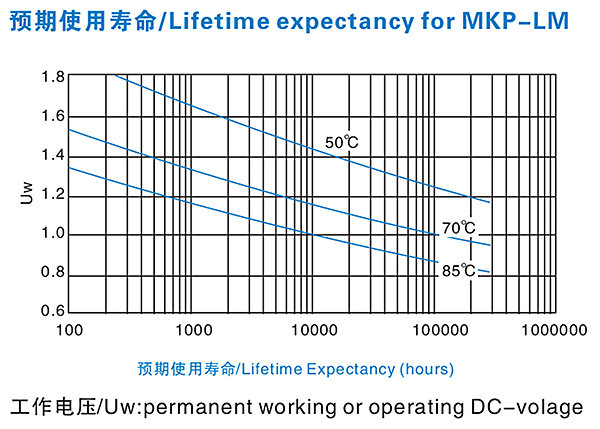

预期寿命/Life expectancy

100000h at Un  and 70℃
